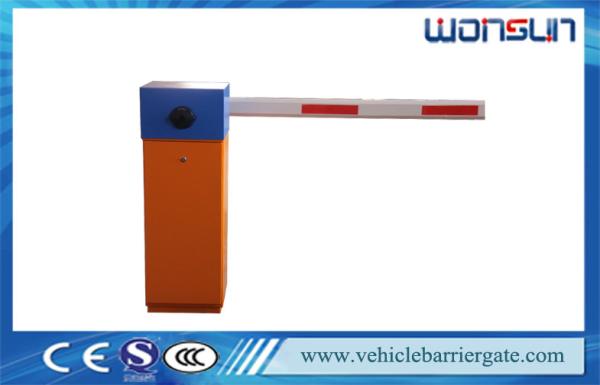

Aluminum Boom Barrier Parking Barrier Gate For Parking Lot System
WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE
IF INTEREST, PLEASE CONTACT ME FREELY!
SKYPE: zimin1314
Whatsapp: +86 18507481610
Technical data:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 1.8s,3s, 6s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -20 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 55KGS
Features:
Integrative machine core: all part is made by mold, so all parts can be more accurate. And so the
barrier gate can be much more stable;
.Left or right installed can be amendable. Customer can amend install direction by himself;
.Accurate link mechanism: link mechanism can release arm’s shake and motor load, so the
barrier gate can move more stable and barrier gate’s working life can be more longer;
.70W turbine worm transmission deceleration induction motor: Drive Steady, Noise Lower,
Structures Compact, can realize self-locking.
Functions:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Parking list:
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the
apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your
detail requirements.
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 | | |
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
- the spring is too tight, you need release the spring a little, then test it again.
- see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
