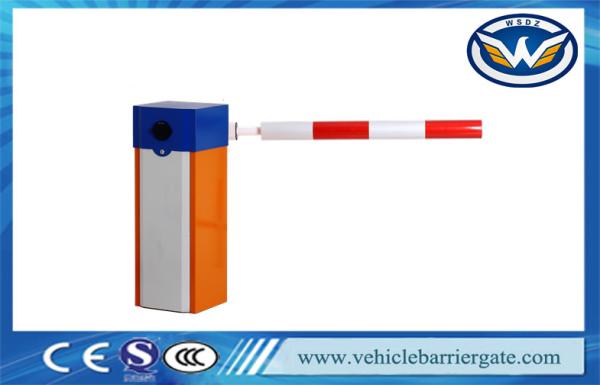

Stainless Steel Automatic Barrier Gate Price Parking Barrier For Toll Gate System
WSTP116 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:
Technical Specifications:
| Product Name | Stainless Steel Automatic Barrier Gate Price Parking Barrier For Toll Gate System |
| Model Nuber | WSTP-116 |
| Operation Time | 0.6s,1s1.8s,3s,6s |
| Arm Type | Straight arm,two fence arm,three fence arm,90 degree folding arm,180 degree folding arm |
| Rating Voltage | AC220V/110V±10%,50/60HZ |
| Power Supply | 120W |
| Size | 330*300*950mm(L*W*H) |
| Material | 2.0mm thickness Galvanized plate sheet or cold roll steel sheet |
| Remote Control Distance | ≥30meters |
| Working Temperature | -35℃ to +75℃ |
| Packing | 1030*380*450mm,with seven layers carton size,inside with air bubble film for protection |
| Warranty | one year |
Barrier Gate Functions:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Packing List:
FAQ:
Q1: What’s your MOQ?
A1: MOQ 1 pc.
Q2: How about bout lead time and delivery?
A2: 2-7 days lead time. We can send by any kind of shipping methods.
Q3: Can you do OEM?
A3: Yes, we do OEM, and can customize barrier gate case, color, logo or controller for you.
Q4: What about quality warranty and after-sale service?
A4: 1 year warranty. We will support customer any quality issues, and our enterprise principle is to build long term after-sale service for all customers.
Q5: Can you provide barrier gate installation instruction?
A5: Online/remote instruction can be provided by the technicians if need. Others depend on your detailed requirement.
