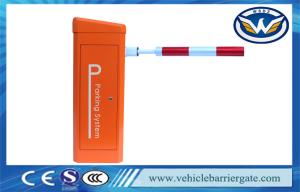

10Million Times Automatic Serve Motor Barrier Gate For Toll Gate Station
Wonusn patented 138 series serve motor barrier gate,combining permanent-magnet synchrounous serve motor(PMSM motor) with high quality aluminum alloy press forming housing & well-designed gear reducer,the motor features high power density,low noise,small vibration,high efficiency and fast response as special drive applied.Compared with traditional asynchronous motor,the serve motor has such advantages as higher efficiency,higher power factor,lighter,low temprerature rise,better power-saving,by which it improves power grid quality factor,and brings current power grid capacity into full play,thus save investment on power grid.The motor drive employees serve motion control algorithm to accurately position open/colse position and motion curve track through encoder,able to be widely use for expressway toll station,bus station,shopping mail,airport,hospital.,etc
Product Specifications
| Arm Length | Max6M |
| Opening And Closing Time | 0.3S,0.6S,0.9S,3S,4S |
| Rated Voltage | AC100V~AC264V,DC24V |
| Frequency | 50Hz~60Hz |
| Motor Rated Power | 50W,Max 100W |
| Working Environment | -40 ℃ ~85 ℃ |
| Power | Standby≤8W,run≤100W |
| Housing Size(H*W*H*W) | 342*312*959*2mm |
| Lifetime | More than 10 million operation time or 10 years |
| MTTR | <0.5Hrs |
| MTBF | >500 million operation times |
| Protection Degree | IP65 |
| Relative Humidity | ≦ 90% |
| Motorno-load speed | 3000r/min |
| Remote Distance | ≦ 100m |
| Output Torque | 0.86N.M*140=120N.M |
| Running Noise: | <60dB |
| Net Weight | 42.6KG |
Features and Functions
1.power off automatic gate, no clutch design, without human intervention.
Incoming call automatic reset, restore to close state.If you have t special need for manual intervention,you can complete the manual open/close boom by setting the control board DIP switch,to ensure the system can be used normally anytime.
2.use the single compression spring balance device,no noise,not easy to fatigue and break ,easy to adjust,safe and reliable.
3.a variety of input and output modes can be selected, often open and close can be selected.
4.rod angle can be adjusted from 60~90 degrees, 10 degree resolution.
5.closing speed can be adjusted, 0.9s, 1.3s.
6.open/close signal relay switch output.
7.barrier gate running state signal OK output.
8.alarm signal output.
9.R&G traffic light relay signal outpue.
10.external vehicle detection anti-hit interface,infrared sensor anti-hit interface.
11.counting mode interface.
12.preferential anti-hit function.
No matter the barrier gate is in which state, when the operator gives a opening boom command through the triple key, software or remote control button, the barrier gate will give priority to the implementation of the opening operation.
13.anti-hit and rod droped protection function.When the car hits boom,the boom will be droped automatical to avoid the damege on the car and barrier gate.
14.delay rod closing optional function.
15.high sensitive auto-reverse function.
16.parking lot system interface.
17.RS285 or RS232 network communication control open/close interface.(no need to install commnunication moudle)
18.anti-crash alarm signal interface.
19.direction exchange is easy.
20.adjustable speed port.
21.high strength precision cast steel parts
Product Display
