Parking Dc24v Serve Motor Automatic Boom Barrier Gate 2000mm - 6000mm Arm Length
Keywords: Barrier Gate, Intelligent Barrier Gate, Automatic Barrier Gate, Traffic Barrier Gate, Boom Barrier Gate, Road Barrier Gate, Parking Barrier Gate, Car Barrier Gate, Boom Gate, Boom Barrier Gate, Security Barrier Gate, Safty Barrier Gate, Gate Bridge Barrier, Barrier Arm, Boom Arm, Vehicle Barrier Gate, Vehicle Parking Barrier gate, Vehiclie Boom Gate, Industrial Barrier Gate, Remote Control Barrier Gate, Electric Barrier Gate, Folding Barrier Gate, 90 Degree Folding Barrier Gate, 180 Dgree Folding Barrier Gate, Fence Barrier Gate, 2 Fence Barrier Gate, 3 Fence Barrier Gate, Gate Barrier, Arm Gate, Arm Barrier
Technical Specifications:
| Model | DZ-138 automatic barrier gate |
| arm length: | 2000mm-6000mm |
| opening and closing time: | ≤ 0.6s, 0.9s, 2s, 4s |
| Rated voltage: | AC100V ~ AC264V, DC24V |
| Frequency: | 50Hz ~ 60Hz |
| Motor rated power: | 50W, the maximum power of 100W |
| Working environment temperature: | -40 ℃ ~ 75 ℃ |
| Power: | standby ≤ 8W, run ≤ 100W |
| Dimensions (W * D * H): | 342 * 312 * 959mm |
| Lifetime: | more than 10 million or 10 years |
| MTTR: | <0.5 hours |
| MTBF: | > 5 million times |
| Protection degree: | IP65 |
| Relative humidity: | ≤ 90% |
| Motor no-load speed: | 3000 r / min |
| Remote control distance: | ≤ 100 meters |
| Longest ARM length: | 6 meters |
| Output torque: | 0.86N.M * 140 = 120N.M. |
| running noise: | < 50dB |
| Barrier N.W | 42.6kg |
| Machine core N.W | 22.1kg |
| Surface treatment | Outdoor metal powder, electrostatic spraying |

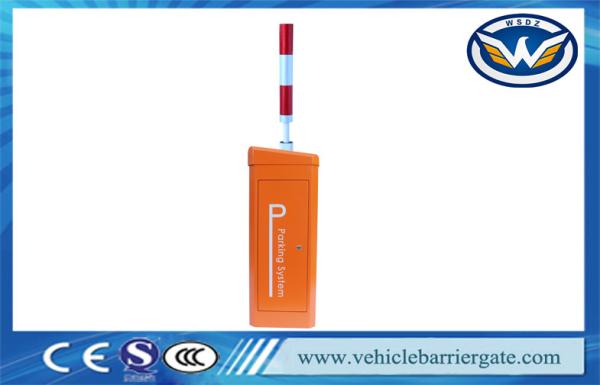

Product Display:
Main Functions:
1: power failure automatic gate, no clutch design,
Incoming call automatic reset, restore to close state. If you have special need that manual intervention, it can be set up easily, you can gently rotate poles to manual Open / close boom without open the housing by using adjust the control board
2: a variety of input and output modes can be selected, often open and close can be selected.
3: rod angle can be adjusted from 55~90 degrees, 10 degree resolution.
4: Closing speed can be adjusted, 0.9s, 1.3s, 1.8s.
5:all kinds of state signal output.
6: barrier gate running state OK signal output.
7: alarm signal output.
8: traffic lights signal relay output.
9: external Vehicle detection signal, infrared sensor signal.
10: AC90V~AC264V50/60Hz, the global universal voltage standard. Also available
24V battery power supply.(No mains place to pick up solar energy,wind energy to recharge battery)
11: the Opening time is less than 0.9s.
12: the running noise is less than 60dB.
13: standard file length 3m.
14: Power consumption: 50W, maximum power 100W.
15:It is also a simple matter to change the handing on-site from right-axial to left-axial.
16: automatically detect whether the balance spring fatigue or damage, if the spring
fatigue tips to adjust, if you can not adjust the spring, replace the spring is very easy,
no need to use tools, hand can be replaced.
17: remote control open / close and car park system control open / close, separate
input, respectively, the number of corresponding statistics.
18: the RS232 or RS485 connected to PC of the parking system.
Our Service:
1. OEM Brand, Logo, Label available
2 2 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
