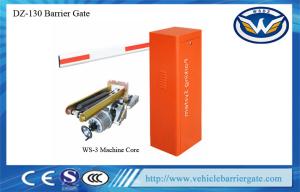

Remote Control Auto Barrier Gate System , DZ-130 Car Parking Barriers

Brand Name : WONSUN

Model Number : DZ-130

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability : 1000 Sets/Month

Delivery Time : 3-7 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Name : DZ-130 Boom Barrier Gate

Application : Parking Lots, Toll System, Airport, Hotel, Residential

Color : Red,Yellow or Customized

Boom Option : Straight,Folding,Fencing,Flexible

Working Temperature : -45°C ~ +75°C

Material : 1.5mm Galvanized Plate or Cold Roll Plate with Epoxy Paint

Operation Testing : More than 5 million times

Arm length : Max 6M

Speed Option : 1.8s; 3s; 6s

OEM Service : Support

Contact Now

Remote Control Automatic Vehicle Barrier Gate Car Parking Barriers For Parking Lot Sensor System

Our Advantages:

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support.
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order

Product Description

DZ-130 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 1.5mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control. Here introduce more details as below:

Specifiction

2nd Generation DC Brushless Technical Parameter (DZ-130)
1 Power Supply DC24V
2 Rated Power 160W
3 Motor 2nd Generation DC Brushless Motor
4 Motor No-load Speed 1850r/min
5 MTBF 5 million
6 Spring 2 pcs
7 Input interface Photocell, Loop detector, parking system
8 Output interface motor, traffic lights
9 Coummnication RS485, TCP/IP optional (need to pay extrally)
10 Remote distance ≤100M (open, sunny weather)
11 Boom Arm Default Aluminum Alloy Straight/Telescopic Arm 80*45mm/100*45mm
12 Housing Thickness 1.5mm cold-roller sheet with powdercoated
13 Housing size (L*W*H) 335mm*285mm*925mm
14 Package dimension 1030mm*380*450mm
15 Net / Gross Weight 45KG / 48KG
16 Max Boom Length Straight arm 6M, Two Fence Arm 4.5M, Three Fence Arm 4M
17 Open/Close Speed 1.5S~6S
18 Protection Grade IP54
19 Working Temperature -30℃+70℃
20 Relative Humidity ≤90%
21 Output Power 56.8N.m
22 Rated Current 8.58A

Features:

1. This barrier gate is widely used for the facilities of parking lots, traffic or toll system, we don’t suggest for high way and other heavy duty application.
2. Arms can be chosen from 2 meters to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell, Airwave switch, loop detector, LED light bar, toll gate system and output terminals for flashing light.

PACKING&SHIPPING

​

We use strong carton case with air bubble filled inside to protect products and save your cost.

Our Services

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order

Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.

Q: Do you provide free samples ?

A: No,we don't provide free samples. The MOQ is 1pc.
