Traffic Barrier Gate DC Brushless Motor DZ-130 Remote Control Barrier
| 2nd Generation DC Brushless Technical Parameter (DZ-130) |
| 1 | Power Supply | DC24V |
| 2 | Rated Power | 160W |
| 3 | Motor | 2nd Generation DC Brushless Motor |
| 4 | Motor No-load Speed | 1850r/min |
| 5 | MTBF | 5 million |
| 6 | Spring | 2 pcs |
| 7 | Input interface | Photocell, Loop detector, parking system |
| 8 | Output interface | motor, traffic lights |
| 9 | Coummnication | RS485, TCP/IP optional (need to pay extrally) |
| 10 | Remote distance | ≤100M (open, sunny weather) |
| 11 | Boom Arm | Default Aluminum Alloy Straight/Telescopic Arm 80*45mm/100*45mm |
| 12 | Housing Thickness | 1.5mm cold-roller sheet with powdercoated |
| 13 | Housing size (L*W*H) | 335mm*285mm*925mm |
| 14 | Package dimension | 1030mm*380*450mm |
| 15 | Net / Gross Weight | 45KG / 48KG |
| 16 | Max Boom Length | Straight arm 6M, Two Fence Arm 4.5M, Three Fence Arm 4M |
| 17 | Open/Close Speed | 1.5S~6S |
| 18 | Protection Grade | IP54 |
| 19 | Working Temperature | -30℃+70℃ |
| 20 | Relative Humidity | ≤90% |
| 21 | Output Power | 56.8N.m |
| 22 | Rated Current | 8.58A |

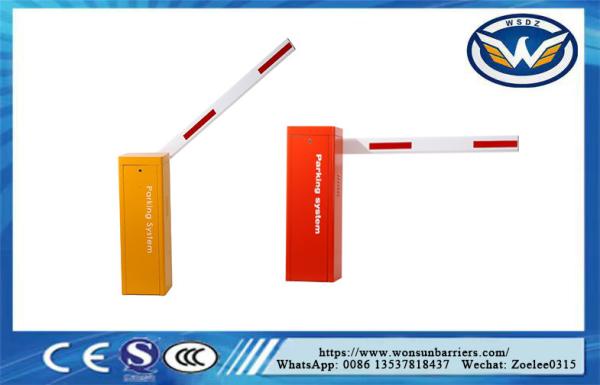

DZ-130 is a hot-selling barrier gate both at home and abroad. It has a unique and simple design. It is available in various colors such as yellow, gray, and red. The backside, there is a non-welding handle design, which will not be deformed and rusted. It is equipped with a waterproof ring device, which is more durable, longer life, and better quality than those on the market. There is a two-stage variable speed reducer inside, a 2nd-generation DC brushless motor, rated power is 160W, adopt side-loading mode, simple and highly integrated. The three-link is made of precision-cast steel, which can be matched with two tension springs, and we have a patented anti-skid device.
The arm direction can be interchanged easily, and the arm can be lifted manually when the power is off.
The power supply is exclusively customized by ourselves.
This control board is independently developed by us and uses imported chips, has independent algorithms, and powerful functions.
