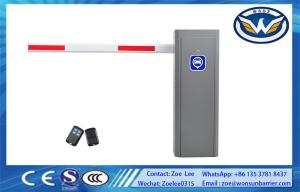

Boom Barrier DC24V Speed Adjustable Barrier Gate For Parking Lot
1. The control system adopts high-tech digital chip technology.
2. Sensing function, with digital vehicle detector
3. High-sensitivity limit switch, the pole can be switched instantly, and the positioning is accurate.
4. Stable performance, sensitive response, low noise
5. Anti-collision function. protect passengers
6. This function makes the operation stable and prolongs the service life.
7. The action adopts the most stable running mode - non-constant speed mode. Or variable speed excitation. (Slow-fast-slow) 8. The box shell is made of thickened steel, which is formed through 13 technological processes. No fading, waterproof, no rust, durable.
Specifications
| 5TH Generation DC Brushless Technical Parameter (DZ-2212) |
| 1 | Power Supply | DC24V |
| 2 | Rated Power | 150W |
| 3 | Motor | 5TH Generation DC Brushless Motor |
| 4 | Motor No-load Speed | 1850r/min |
| 5 | MTBF | 5 million |
| 6 | Spring | 2 pcs |
| 7 | Input interface | Photocell, Loop detector, parking system,etc |
| 8 | Output interface | motor, traffic lights, etc |
| 9 | Coummnication | RS485, TCP/IP optional |
| 10 | Remote distance | ≤100M (open, sunny weather) |
| 11 | Boom Arm | Default Aluminum Alloy Straight/Telescopic Arm 80*45mm/100*45mm |
| 12 | Housing Thickness | 1.5mm cold-roller sheet with powdercoated |
| 13 | Package dimension | 1030*380*385mm |
| 14 | Max Boom Length | Straight arm 6M/each side, Two Fence Arm 4.5M, Three Fence Arm 4M |
| 15 | Open/Close Speed | 1.2s-3s, 2.4s~6s |
| 16 | Protection Grade | IP54 |
| 17 | Working Temperature | -30℃+75℃ |
| 18 | Relative Humidity | ≤90% |
| 19 | Output Power | 56.8N.m |
Speed
| Arm Type | Arm Length(L) | Operation time(S) |
| Stright Arm | 5m-6m | 6s |
| 4.5m-5m | 4s |
| 3m-4.5m | 3s |
| 90 Degree Folding Arm | Less Than 4.5m | 5s |
